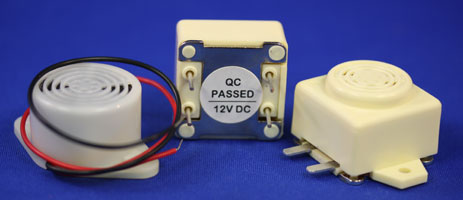

Mechanical Buzzers
PC Pin • Wire Lead • Solder Blade
Mechanical buzzers have unique characteristics due to their physical construction. They are a reliable, mature technology that is still in employed in special applications.
  • Low Frequency Tone (400 Hz)
  • No Arcing
Loading the player...

TERMINATION STYLES:

Part Number Tone Size Operating Voltage Loudness
(at Nom. Vpp)
Resonant Frequency Current (at Nom. V) Termination Type Sound Port Washing Label RoHS
Lead
Free
Long Dia.
mm
Wide
mm
High
mm
Nom Vdc Min Vdc Max Vdc SPL
db(A)
at cm Fº
Hz
mA Type Spacing / Length
mm
Part Number Tone Size Operating Voltage Loudness
(at Nom. Vpp)
Resonant Frequency Current (at Nom. V) Termination Type Sound Port Washing Label RoHS
Lead
Free
Long Dia.
mm
Wide
mm
High
mm
Nom Vdc Min Vdc Max Vdc SPL
db(A)
at cm Fº
Hz
mA Type Spacing / Length
mm
CECB225W145-127C400PR Cont. 22.5 16.0 14.5 24 12 27 75 20 400 30 PC Pins 15.25 X 7.6 Top N A Yes
CECB225W145-408C400PR Cont. 22.5 16.0 14.5 6 4 8 75 20 400 25 PC Pins 15.25 X 7.6 Top N A Yes
CECB225W145-915C400PR Cont. 22.5 16.0 14.5 12 9 15 75 20 400 25 PC Pins 15.25 X 7.6 Top N A Yes
CEMB26K197-24C04PR Cont. 26.0 26.0 19.7 24 20 28 95 10 400 50 PC Pins 19.0 X 9.5 Top No Yes
CEMB26K197-06C04PR Cont. 26.0 26.0 19.7 6 4 8 95 10 400 50 PC Pins 19.0 X 9.5 Top No Yes
CEMB26K197-12C04PR Cont. 26.0 26.0 19.7 12 8 16 95 10 400 50 PC Pins 19.0 X 9.5 Top No Yes
Part Number Tone Size Operating Voltage Loudness
(at Nom. Vpp)
Resonant Frequency Current (at Nom. V) Termination Type Sound Port Washing Label RoHS
Lead
Free
Long Dia.
mm
Wide
mm
High
mm
Nom Vdc Min Vdc Max Vdc SPL
db(A)
at cm Fº
Hz
mA Type Spacing / Length
mm
Part Number Tone Size Operating Voltage Loudness
(at Nom. Vpp)
Resonant Frequency Current (at Nom. V) Termination Type Sound Port Washing Label RoHS
Lead
Free
Long Dia.
mm
Wide
mm
High
mm
Nom Vdc Min Vdc Max Vdc SPL
db(A)
at cm Fº
Hz
mA Type Spacing / Length
mm
CEMB335Y155-408C400W120R Cont. 33.5 17.0 15.5 6 4 8 75 20 400 25 Wire 26 AWG 120 Top N A Yes
CEMB335Y155-527C400W120R Cont. 33.5 17.0 15.5 24 15 27 75 20 400 30 Wire 26 AWG 120 Top N A Yes
CEMB335Y155-915C400W120R Cont. 33.5 17.0 15.5 12 9 15 75 20 400 25 Wire 26 AWG 120 Top N A Yes
CEMB264I176-408C400W150R Cont. 41.0 26.4 17.6 6 4 8 95 10 400 33 Wire 28 AWG 150 Top N A Yes
CEMB260I176-716C400W150R Cont. 41.0 26.4 17.6 12 7 16 95 10 400 23 Wire 28 AWG 150 Top N A Yes
Part Number Tone Size Operating Voltage Loudness
(at Nom. Vpp)
Resonant Frequency Current (at Nom. V) Termination Type Sound Port Washing Label RoHS
Lead
Free
Long Dia.
mm
Wide
mm
High
mm
Nom Vdc Min Vdc Max Vdc SPL
db(A)
at cm Fº
Hz
mA Type Spacing / Length
mm
Part Number Tone Size Operating Voltage Loudness
(at Nom. Vpp)
Resonant Frequency Current (at Nom. V) Termination Type Sound Port Washing Label RoHS
Lead
Free
Long Dia.
mm
Wide
mm
High
mm
Nom Vdc Min Vdc Max Vdc SPL
db(A)
at cm Fº
Hz
mA Type Spacing / Length
mm
CEMB352Z203-117C400TR Cont. 35.2 24.0 20.3 117 70 150 75 10 400 30 Solder Blades   Top N A Yes
CEMB356X230-220C400TR Cont. 35.6 20.0 23.0 220 160 260 80 10 400 30 Solder Blades   Top N A Yes
CEMB400Y195-228C400TR Cont. 40.0 26.0 19.5 24 20 28 95 10 400 55 Solder Blades   Top N A Yes
CEMB400Y195-408C400TR Cont. 40.0 26.0 19.5 6 4 8 95 10 400 65 Solder Blades   Top N A Yes
CEMB400Y195-816C400TR Cont. 40.0 26.0 19.5 12 8 16 95 10 400 55 Solder Blades   Top N A Yes

CALL FOR SAMPLES: 800-722-8197

For fastest service, please call during business hours 9 - 5 PM EST. Or use this Form to tell us what component(s) you are interested in, and how you would like us to contact you.

CONTACT INFORMATION

Name
Company
Email
Phone
Best Time To Call
Regarding

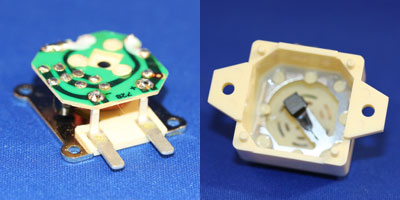

What’s Inside

Mechanical Buzzers is a Solid State circuit which is self-oscillating that converts the electrical energy to a magnetic field. As the magnetic field is turning on and off it changes the magnetic field polarity in the coil. The membrane includes a miniature permanent magnet which reacts with the coil magnetic field pulling or pushing the membrane and producing the sound.
